详细参数
| 参数名称 | 参数值 |
| Source Content uid | DAC8832ICRGYT |
| Brand Name | Texas Instruments |
| 是否无铅 | 不含铅 |
| 是否Rohs认证 | 符合 |
| 生命周期 | Active |
| Objectid | 2099305610 |

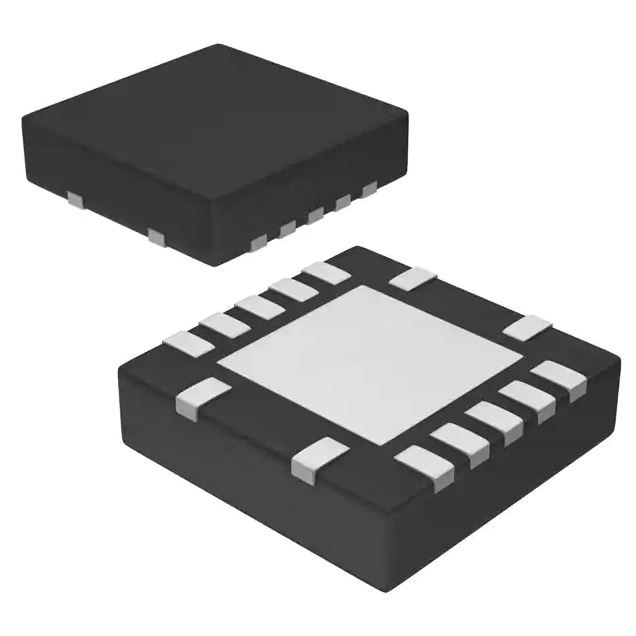

| 零件包装代码 | QFN |
| 包装说明 | HVQCCN, LCC14/18,.14SQ,20 |
| 针数 | 14 |
| Reach Compliance Code | compliant |
| ECCN代码 | EAR99 |
| HTS代码 | 8542.39.00.01 |
| 风险等级 | 1.59 |
| Samacsys Description | 16-bit Ultra-low power voltage output Digital-to-Analog Converter |
| Samacsys Manufacturer | Texas Instruments |
| Samacsys Modified On | 2021-08-02 16:02:48 |
| YTEOL | 15 |
| 最大模拟输出电压 | 5.5 V |
| 最小模拟输出电压 | -5.5 V |
| 转换器类型 | D/A CONVERTER |
| 输入位码 | BINARY |
| 输入格式 | SERIAL |
| JESD-30 代码 | S-PQCC-N14 |
| JESD-609代码 | e4 |
| 长度 | 3.5 mm |
| 最大线性误差 (EL) | 0.0015% |
| 湿度敏感等级 | 2 |
| 位数 | 16 |
| 功能数量 | 1 |
| 端子数量 | 14 |
| 最高工作温度 | 85 °C |
| 最低工作温度 | -40 °C |
| 封装主体材料 | PLASTIC/EPOXY |
| 封装代码 | HVQCCN |
| 封装等效代码 | LCC14/18,.14SQ,20 |
| 封装形状 | SQUARE |
| 封装形式 | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| 峰值回流温度（摄氏度） | 260 |
| 电源 | 3/5 V |
| 认证状态 | Not Qualified |
| 采样速率 | 1 MHz |
| 座面最大高度 | 1 mm |
| 最大稳定时间 | 1 µs |
| 标称安定时间 (tstl) | 1 µs |
| 子类别 | Other Converters |
| 最大压摆率 | 0.02 mA |
| 标称供电电压 | 3 V |
| 表面贴装 | YES |
| 温度等级 | INDUSTRIAL |
| 端子面层 | NICKEL PALLADIUM GOLD |
| 端子形式 | NO LEAD |
| 端子节距 | 0.5 mm |
| 端子位置 | QUAD |
| 处于峰值回流温度下的最长时间 | 30 |
| 宽度 | 3.5 mm |
